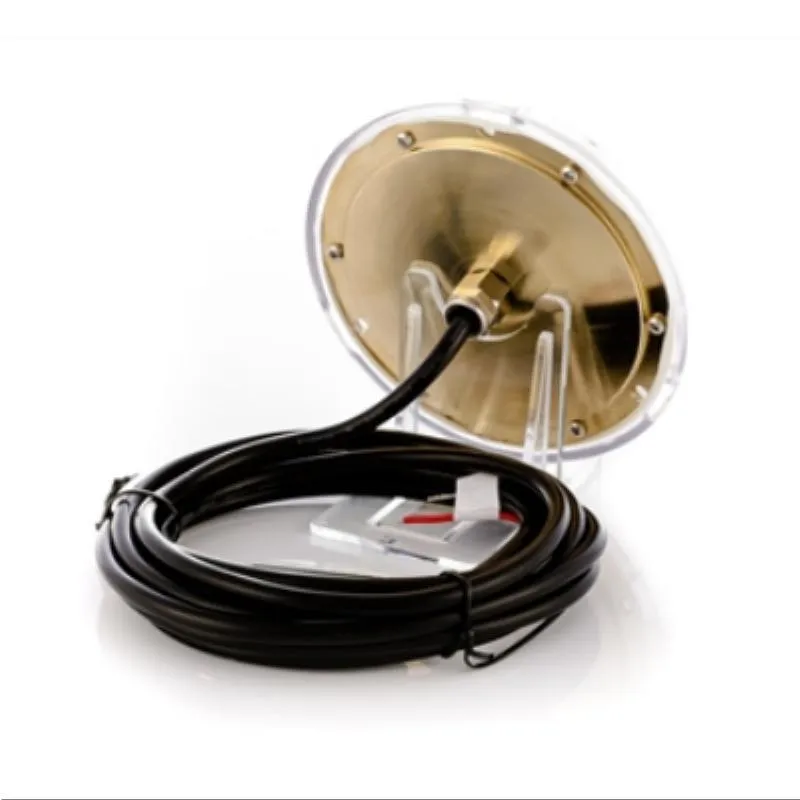

The Bluefin MAKO M12 IFM (Interchangeable Flush Mount) are powerful thruhull mounted underwater lights suitable for boats up to approx 20 metres (65Ft). They provide 6,300 fixture lumens and up to 9,000 lamp lumens of light. The LED unit is fully waterproof sealed in high impact optical polymer.
The MAKO lights thru-hull mounting provides a safe and secure mounting with the added benefit of a removable LED cartridge that can be serviced from inside the hull eliminating the need to slip the boat. Waterproof fuse holder & fuse are provided and a template & detailed installation manual is included in the box.
The MAKO lights have an AB2 bronze housing with an aluminium internal cartridge sleeve. If fitting to steel or aluminium boats the optional delrin isolation sleeve must be used.
Features:
- Powerful 6,300 fixture lumens light output. Max lamp lumens 9,000

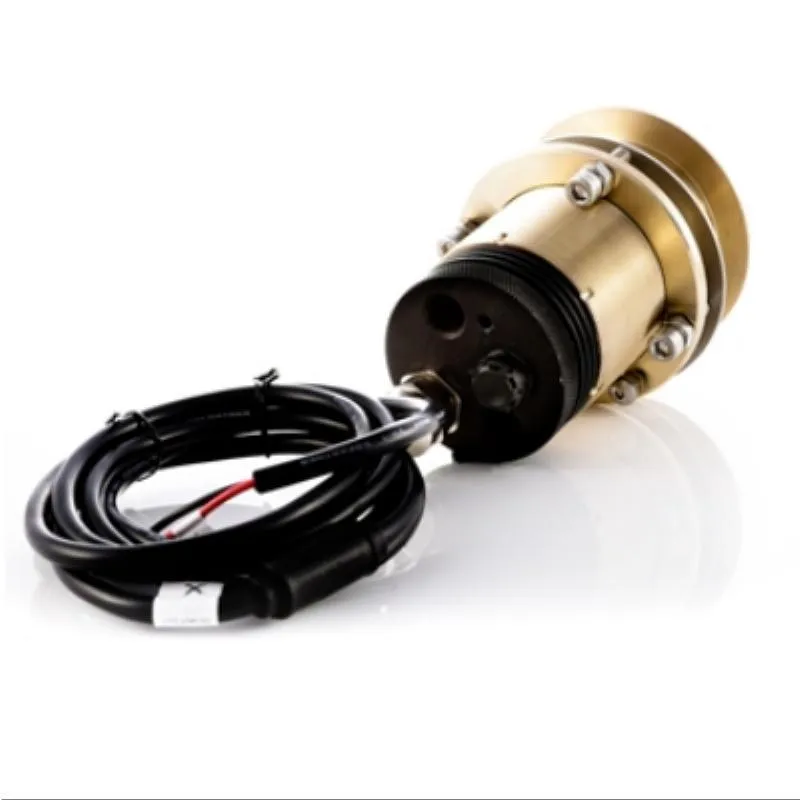

- Thru-hull mounted. AB2 bronze housing with removable light cartridge
- Thru-hull interchangeable requires 65mm entry hole
- Protection - under / over voltage - reverse polarity - active thermal
- Hydro block & Nano coating technology
- Just 2 wires to connect. Cable length 1.8 metre
- 60 degree beam angle
- Integral driver (single colour lights). Colour change light has external driver
- Supplied with waterproof fuse holder, fuse, S/S screws & installation manual
- Suitable for below waterline mounting on transom, side or under hull
- 2 year limited warranty. All installation instructions must be adhered to. 12 volt or 24 volt available
Note: Please View the  for more information
PLEASE NOTE: WARRANTY COVERS ONLY PROFESSIONAL INSTALLATION
| PART NUMBER | COLOUR | SUITS BOATS | LED LIFE EXPECTANCY | 12V | FIXTURE DEPTH | WIDTH |
|---|---|---|---|---|---|---|
| RWB-6341 | Diamond White | Approx. 20 metre (65ft) | 50,000 hours | 5.1 Amps | 110mm | 85mm |
| RWB-6343 | Cobalt Blue | Approx. 20 metre (65ft) | 50,000 hours | 5.1 Amps | 110mm | 85mm |
| RWB-6345 | Emerald Green | Approx. 20 metre (65ft) | 50,000 hours | 5.1 Amps | 110mm | 85mm |
